Key Features:

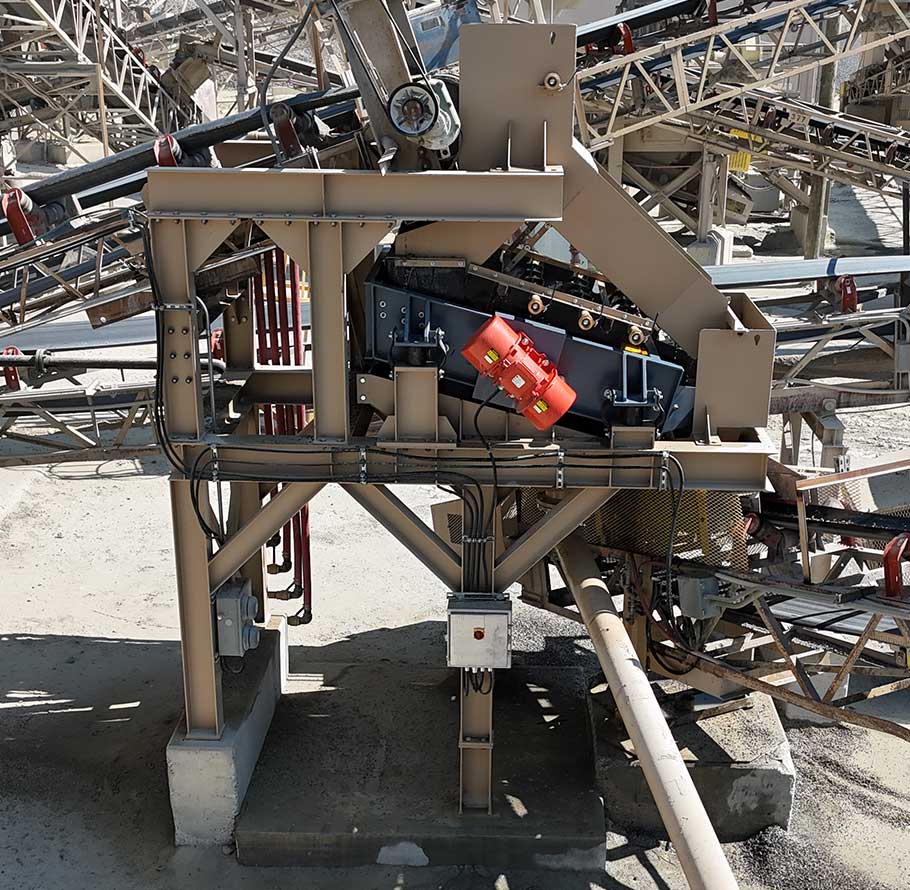

• Compact Rinse Screen for cleaning small volumes of finished aggregate product with minimal required maintenance.
• Reduced installation cost to provide a practical solution for producing 50-100 TPH of washed aggregate product.

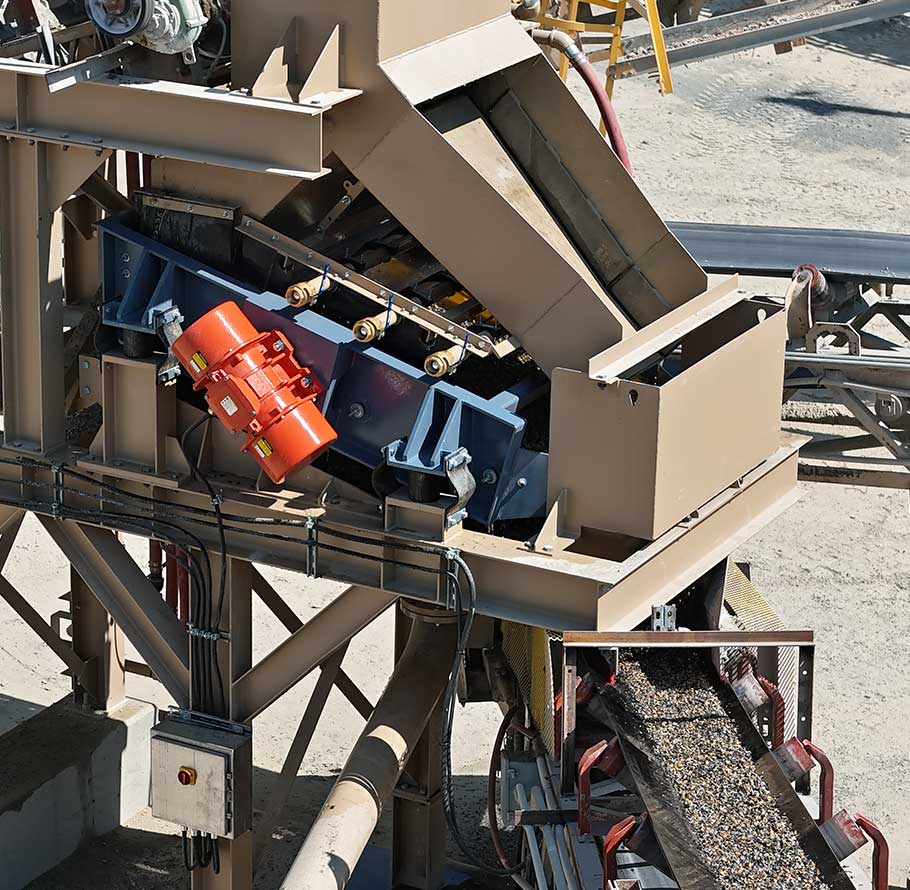

• Side mounted motors produce a powerful linear motion with a 45-degree stroke angle.
• Heavy-duty structural channel frame construction to stand up to high force operation.
• Rubber spring system to reduce start/stop overtravel and isolate vibration while eliminating pinch points.
• Fully customizable modular support structures to facilitate ease of installation and fit perfectly into existing footprints.
• Overhead bypass chutes for wet/dry operation.

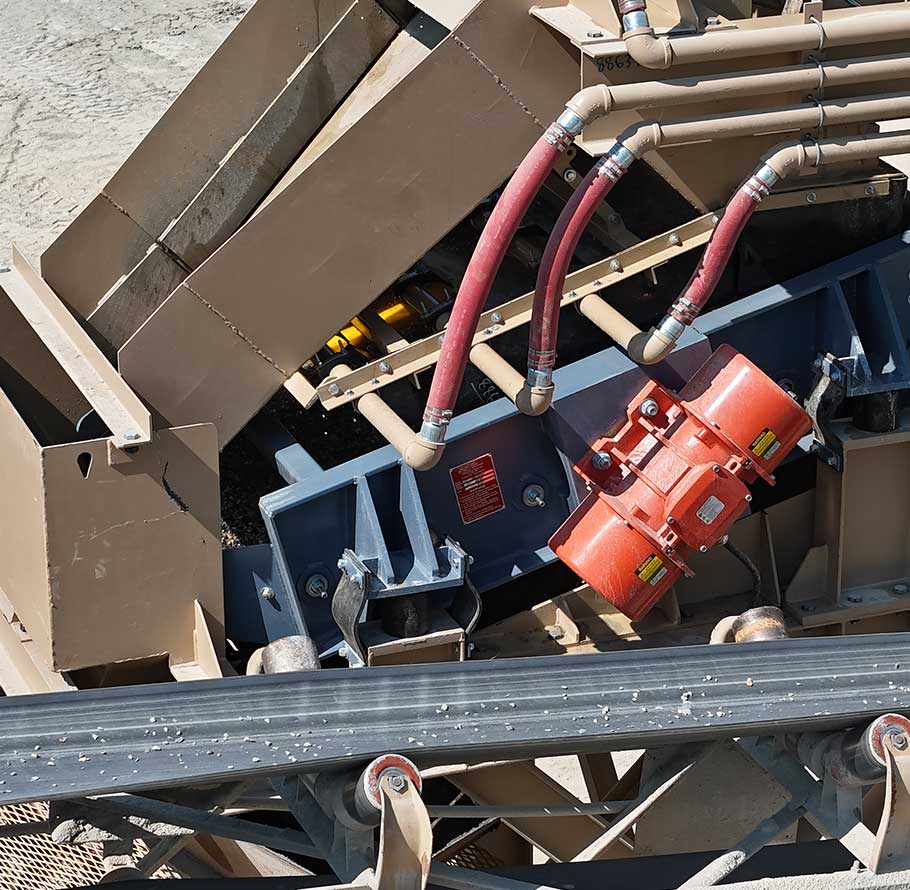

• Custom spray bar assemblies and manifolds designed to suit the customer’s water volume and supply source. Manifolds include gate valves for flow control and pressure gauges with a sealed diaphragm to prevent plugging.

Micro Mule Options:

• Side tension wire cloth or modular urethane screening media.
• Custom support towers with access platforms and stairs or ladder to grade.
• Bolted rubber, urethane, or AR Steel discharge lip and feedbox liners.

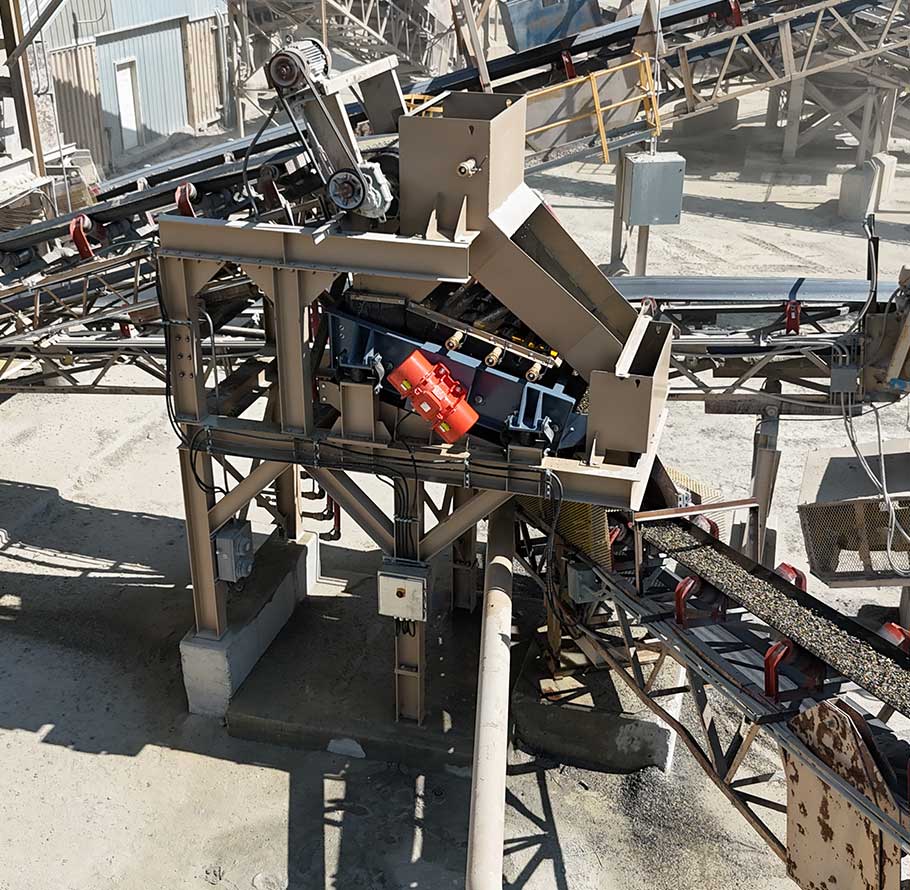

• Modular Support Tower with overhead bypass chute.

Mechanisms:

• L12 – 6 HP Twin Motor Linear Motion Mechanism with 14,000 ft lb of force
• L24 – 12 HP Twin Motor Linear Motion Mechanism with 24,000 ft lb of force

Micro Mule Sizes:

• Single Deck – 4’x6’, 4’x8’ and 4’x10’
